Buyer note:
This is the frame only version of this product and does not include any accessories. Head here to purchase the full kit.

Our Large Walk-In Market Stall with Ground Rail is often used by traders for displaying fashion goods but are ideal for a vast range of uses. This Market Stall does not include counters. You may also be interested in our range of tables or even our Walk-in Market Stalls with Counters.

This framework can also be supplied with a 2ft overhang which is fitted to the front of the Market Stall, select from the options above to see pricing details.

This Market Stall is available in the following sizes:

• 20ft x 10ft
• 16ft x 16ft
• 20ft x 20ft
• 24ft x 16ft

Price varies depending upon size, select from the options above to see full details.

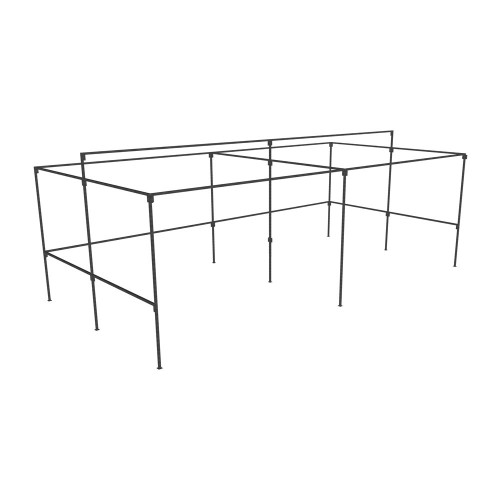

This is the frame only version of our Large Walk In Market Stall with Waist Rail product. The following items are available to purchase as optional extras as part of the full kit which is available here:

• Black Hammer Effect Painted Steel Market Stall Frame
• Heavy duty tarpaulins for roof, back and sides (optional)
• 20-30 x spring clamps depending upon the size of the stall (optional)

Please ensure that your vehicle can transport this Market Stall's longest bar length (see 'max length' in table below for full details).

Size	# of parts	Weight (approx)	Max. length	Recommended tarpaulin
20ft x 10ft	22	90kg	10ft	23ft x 18ft to cover top and back Two 12ft x 9ft tarpaulins to cover sides
16ft x 16ft	30	109kg	8ft	23ft x 18ft to cover top and back 20ft x 15ft cut in half to cover sides
20ft x 20ft	30	126kg	10ft	29ft x 23ft to cover top and back 23ft x 18ft cut in half to cover sides
24ft x 16ft	22	146kg	8ft	29ft x 23ft to cover top and back 20ft x 15ft cut in half to cover sides

Download the PDF data sheet for this Market Stall
(We're currently working on new data sheets for our market stalls. Consequently, some of the information contained in this data sheet may be very slightly out of date).


Steel Frame
Market Stall frames are manufactured from 25mm x 25mm (1 inch x 1 inch) steel box section tube, the industry standard for Market Stall frames. They are finished in a black hammerite paint. Frames slot together using a pin and socket system as pictured above.
