2 year warranty
We're so confident of the quality of our workmanship that if something should fail within the first 2 years, we guarantee to replace or repair it. Click for full details.
Aluminium anodised frame
A lightweight aluminium frame with anodised finish ensures that all components will remain rust free and looking great for years to come.
The optional canopy and side walls supplied with this pop up gazebo frame are fire retardant and comply with British Standard 7837:1996. View the fire retardancy certificate here.
Owing to it's fold up/down construction, this pop up gazebo can be ready to go in less than 5 minutes.
Compact design which will fit in most vehicles. See the additional info tab for full details of dimensions.
A wheeled carry bag is supplied for the frame and roof canopy. An additional carry bag is supplied with optional side walls.
Tie down kit
A tie down kit (pegs and ropes) is supplied with this gazebo as standard. An alternative heavy duty tie down kit and/or steel leg weights can be purchased as optional extras when configuring your gazebo in the drop down menus above.
Full assembly instructions are included as standard.
A full set of 4 side walls can be added as an optional extra (2 x side walls with windows and roll down blinds, 1 x solid back wall and 1 x front wall with zip up door opening).
Weights / anchors
Heavy duty steel leg weights or anchoring kits can be purchased with this pop up gazebo if required.
Custom branding service
We offer a complete roof canopy and side wall branding service for this pop up gazebo, whether it's a simple logo or a full digital print we can help.
Other models in this range
Our S40 is a 3.0m x 3.0m (10ft x 10ft) Mid Range Heavy Duty Aluminium Pop Up Gazebo which offers truly exceptional value for money.
Perfect for regular use such as weekly markets, race meetings, motorsport events, festival trading, exhibitions, marketing and promotional activities, the S40 is a popular choice for those looking to balance cost and durability.
The S40 Pop Up Gazebo includes the following:
- 40mm hexagonal aluminium frame with anodised finish
- 500gsm mesh polyester roof canopy and side walls with PVC coating, fire retardant British Standard 7837:1996
- Wheeled carry bag included as standard
- Tie down kit included as standard
- 2 year manufacturer warranty
- Can be purchased as a frame and roof only, or frame plus roof and side walls, make your selection above

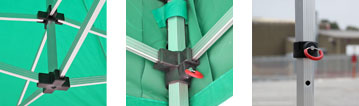

When erected, the S40 Pop Up Gazebo provides a 3m x 3m (10ft x 10ft) covered area. The frame legs are manufactured from a 40mm diameter hexagonal aluminium extrusion with a 2.0mm wall thickness. Roof cross bars are manufactured from a 28mm x 13mm x 2.0mm aluminium extrusion. Glass fibre reinforced nylon connection points ensure all connection points are strong and slide smoothly.
Roof and Side Walls

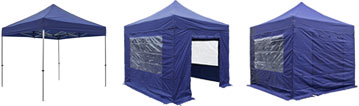

The S40 offers excellent protection from the elements and is supplied with a 500gsm nylon roof and 4 x optional side walls (2 x side walls with windows and roll down blinds, 1 x solid back wall and 1 x front wall with zip up door opening). Roof and side walls are secured to the frame using heavy duty velcro and side walls zip together at the corners to create a weather tight join. All stress areas are reinforced with additional fabric and joins are multi stitched and heat sealed to ensure waterproofing. Various colours are available, make your selection from the drop down menus above.
Included as standard with all S40 Pop Up Gazebos is a wheeled carry bag for the frame and a tie down kit (ropes and pegs) to keep the gazebo grounded in windy conditions. An alternative heavy duty tie down kit and/or steel leg weights can be purchased as optional extras when configuring your gazebo in the drop down menus above. An additional side wall carry bag is supplied when purchased with optional side walls.
The S40 Heavy Duty Aluminium Shelter is covered by a 2 year manufacturers warranty and a comprehensive list of spare parts are kept in stock ready to ship should you need them. Terms and conditions apply, click here for full warranty information.
Dimensions and weights at a glace
See the additional info tab for full details of dimensions.
- Size when erected: 3m x 3m (10ft x 10ft)
- Folded size: 167cm x 31cm x 30cm
- Floor to apex when erected at the lowest setting: 277cm
- Lowest setting to valance: 175cm
- Highest setting to valance: 205cm
- Weight of frame: 25kg
- Weight of canopy: 6kg
- Weight of sides: 14kg
- Combined weight of all three: 45kg
Bespoke Printing and Branding Service, starting at £49.99 inc VAT.
As with all our market stalls and pop up gazebos we offer a full branding service for our S40 Pop Up Gazebo as shown in the examples above. Whether is a simple text print or a full colour digital print we have solutions to suit all budgets so please don't hesitate to get in touch to discuss your requirements. You can download our scaled print template here.
Our customers range from independent traders through to global brands and with our own highly experienced design team at your disposal you can rest assured that we will work with you to develop a bespoke solution that truly meets your requirements. Aside from a sharp eye for detail when it comes to design, we're also actively involved in print technology research and development and over the years have amassed an arsenal of different, highly durable print techniques that can be tailored for a variety of environments.
Here are some of the many customers we've had the pleasure of dealing with recently...
Branded Gazebo Video Examples
- Full Specification
S40 Heavy Duty Aluminium Pop Up Gazebo 3.0m x 3.0m technical specifications Typical uses
Ideal for regular/heavy use. Weekly markets, race meetings, motorsport events, festival trade, exhibitions, marketing and promotion. The S40 is a popular choice for those looking to balance cost and durability.
- Overall footprint: 3.0m x 3.0m (10ft x 10ft)
- Height to roof apex (on lowest leg setting): 2.77m (9ft)
- Height to roof apex (on highest leg setting): 3.07m (10ft)
- Height to bottom of roof valance (on lowest leg setting): 1.75m (6ft)
- Height to bottom of roof valance (on highest leg setting): 2.05m (7ft)
- Frame only: 20.2kg
- Roof canopy only: 5.4kg
- Side walls only: 10.8kg
- Full kit: 36.4kg
Number of parts
- Framework: 1 piece
- Roof canopy: 1 piece
- Side walls: 4 pieces
- Frame carry bag: 1 piece
- Side wall carry bag: 1 piece
5 mins (1-2 people)
Folded down dimensions
1.55m x 0.35m x 0.35m (5ft x 1ft x 1ft)
Please ensure before purchasing that you can carry this dimension in your vehicle
- Roof canopy
- Instruction manual
- Wheeled carry bag
- Tie down kit
- Optional: Side walls (3 x side walls with windows and blinds and 1 x side wall with zip up door opening)
- Optional: Heavy duty tie down kit
- Optional: Steel jigsaw weights
- Frame legs: 40mm diameter hexagonal aluminium extrusion with a 1.8nm wall thickness. Anodised finish.
- Cross bars: 28mm x 13mm aluminium extrusion with a 1.8mm wall thickness. Anodised finish.
- Roof canopy and counter skirt: 500gsm PU coated mesh polyester with PVC coating and heat sealed joins. Fire retardant to BS 7837 : 1996, see the fire certificate here
Fire certificate Data sheet Warranty
2 year limited warranty as standard.
Click here to download the warranty
Full colour digital print can be applied to roof canopy, valance and sidewalls
Click here to download the custom branding template
Product video not currently available.
